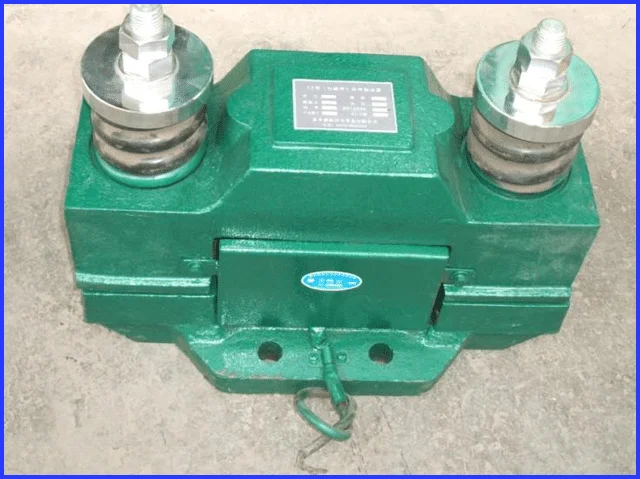

CZ electromagnetic warehouse wall vibrator

Features

Product overview:
Warehouse wall vibrator rely on high frequency vibration and impulse force to solve plug phenomenon, so that the materials from warehouse mouth out.CZ electromagnetic warehouse wall vibrator is used in mining, metallurgy, chemical industry, building materials, machinery and other industries.

Electromagnetic warehouse wall vibrator features:
The warehouse wall vibrator instrument has small volume, light weight, simple structure, low power consumption. warehouse wall vibrator is consist of vibrating body, the resonance components, springs, electromagnet, base. Moldes: CZ10、CZ50、CZ100、CZ250、CZ600、CZ1000. Vibration: 10 ~ 1000. Power: 0.008 ~ 0.2 kw. Installation dimensions as shown in figure: figure (2) CZ250, CZ400, CZ600, CZ800, spiral spring CangZhenQi CZ1000 type, figure (1) is CZ10 type, CZ50, CZ100.

Model	Vibration force (kg)	Power (KW）	Voltage （V）	Current （A）	vibration frequency（ time/min)	vibration amplitude (mm)	warehouse wall thickness (mm)
CZ10	10	0.008	220	0.11	3000	1.5	0.6-0.8
CZ50	50	0.03	220	1.1	3000	1.5	1.2-1.6
CZ100	100	0.06	220	1.0	3000	1.5	2.5-3.2
CZ250 （CZ200）	250	0.1	220	1.6	3000	2	1.0-4.0
CZ600 （CZ400）	600	0.15	220	2.3	3000	2	3.0-8.0
CZ1000 （CZ800	1000	0.2	220	3.8	3000	2	6.0-14
CZ1500	1500	0.45	220	7.0	3000	2	6.0-14

You may contact me through the following methods to obtain all information regarding the machine.
Huang [Sales Manager]
E-mail:info@vibratingscreenq.com
Mobile/WhatsApp/WeChat: +86 17337365719
Henan Quanshun Vibration Equipment Co., Ltd.
Address: Jinghua Road, Xiaojizhen Town, Xinxiang County, Xinxiang City, Henan Province, China

If you place an order, we will arrange delivery within 5 business days after receiving your payment!
