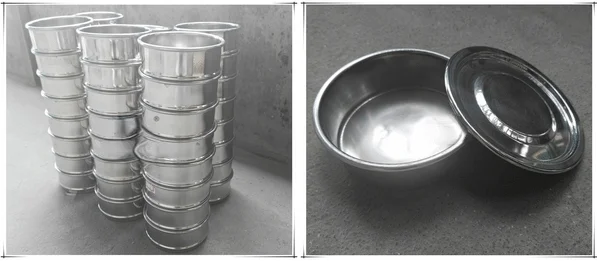

200 mm Lab test sieve

Introduce

Test sieve diameter is100mm, 200mm,300mm and 400mm,complies with ISO3310-2:1990 R2 /3, R20, R40/3 series.

The standard screen size as follow:

8# (2.63 mm)、10# (2.00 mm)、12# (1.70 mm)、14# (1.40 mm)、16# (1.18 mm)、18# (1.00 mm) 、20# (0.85 mm)、25# (0.71 mm)、30# (0.60 mm)、

35# (0.50 mm)、40# (0.425 mm)、45# (0.355 mm)、50# (0.30 mm) 、60# (0.25 mm)、70# (0.212 mm)、80# (0.18 mm)、100#(0.15mm)、120# (0.125 mm) 140# (0.106 mm)、170# (0.09 mm)、200#(0.075mm)、230#(0.063mm)、 270# (0.053 mm)、325# (0.045 mm)、400# (0.038 mm)、500# (0.028 mm)

Note:Φ200 test sieve frame, screen cover, made ​​of high quality stainless steel sieve bottom refined.

Φ100 test sieve is mainly used to detect particle size analysis of materials, widely used in abrasives, the worthy, screening detection metallurgy, pharmacopoeia, chemical and building materials industries granular materials.

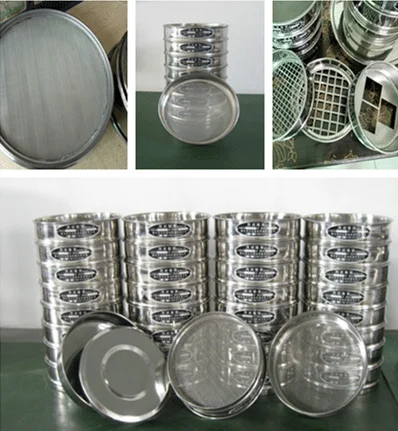

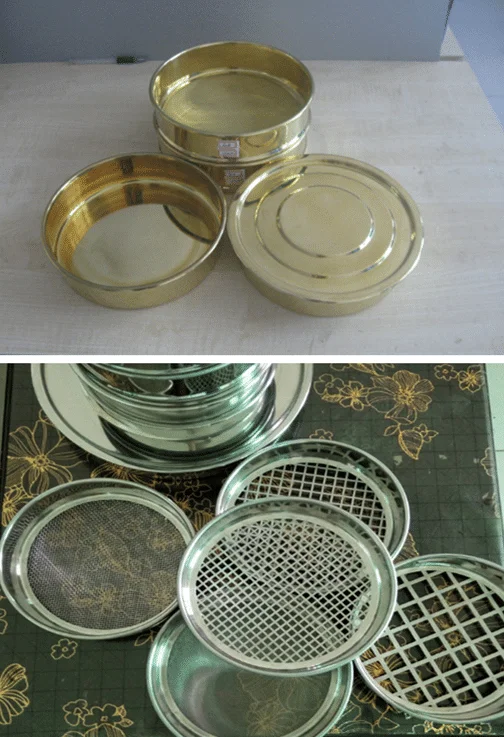

Our test sieve：

Our all test sive can be customized the mesh size,the diameter  of sieve frame,the height the frame,the material.If you have any questions,you can tell me.We try
