Large linear sieve

Large Linear vibrating sieve:

Large linear vibrating sieve is the square vibrating sieve whose size is larger ,have larger capacity to meet your efficient producting.It can be designed as wider,higher,inclined or other request.we have more than 15 years experience to manufacture the vibrating sieve, can according to your capacity request to help you select or design the machine.

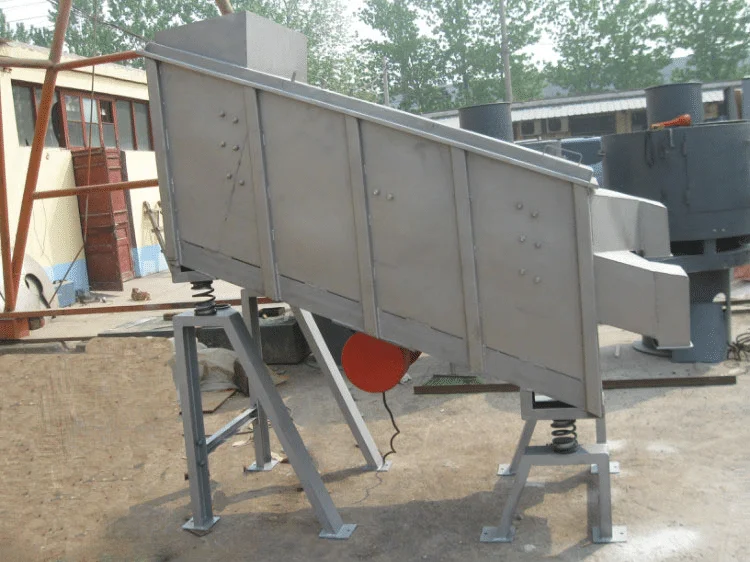

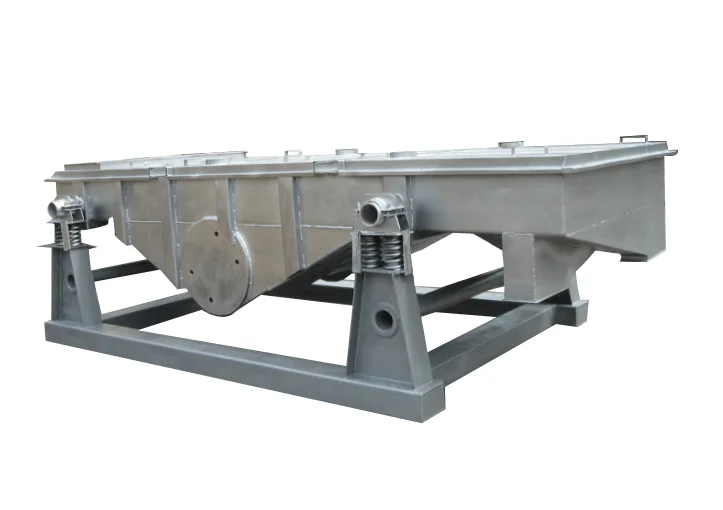

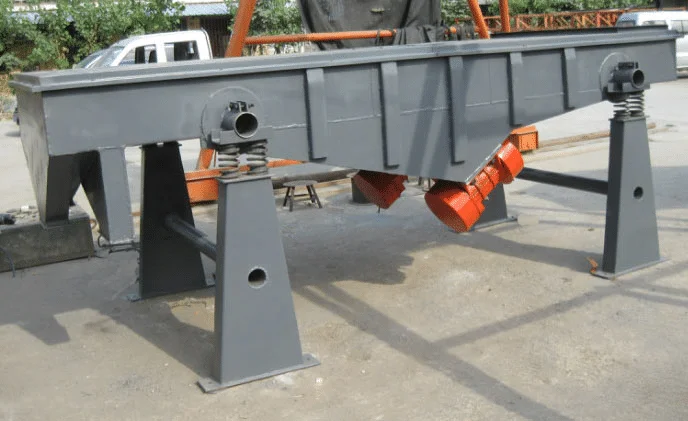

Large linear sieve

About Structural details

The screening machine is mainly composed of screen box, screen frame, screen, vibration motor, motor pedestal, damping springs, brackets and other components.

1,Screen box: the number of different thickness steel plates welded together, with a certain strength and stiffness, is a major component of the screening machine.

2, Screen frame: a small wood made of pine or the amount of deformation is mainly used to keep the screen flat, reaching the normal screening.

3, Screen: low carbon steel, brass, bronze, stainless steel wire mesh and several kinds.

4, Vibration motor (use and maintenance methods are detailed in vibration motor manual).

5, the motor pedestal: Install vibration motor, connecting screws must be tightened before use, especially three days before the new trial screening machine, must repeatedly tightened to avoid loose causing the accident.

6, Damping spring: to prevent vibration transmitted to the ground, while supporting the full weight of the sieve box, during installation, the spring must be perpendicular to the ground.

7, Stents: the four pillars and two channel composition, supports screen box, when you install the pillars must be perpendicular to the ground, the two pillars of the following channels should be parallel to each other.
