Vibrating sieve machine

Overview:

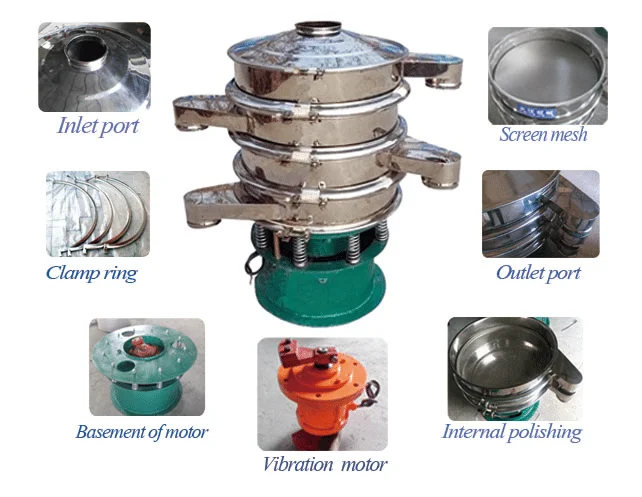

Vibrating sieve is designed as a high-precision screening machinery. The power plant is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.We have standard vibrating sieve machine and we can design machine as client’s request,such as inlet hopper,inspection window,valve to control matering outflow and other requests.

Vibrating sieve machine

Machine sort and applications.

Applications:

Working principle:

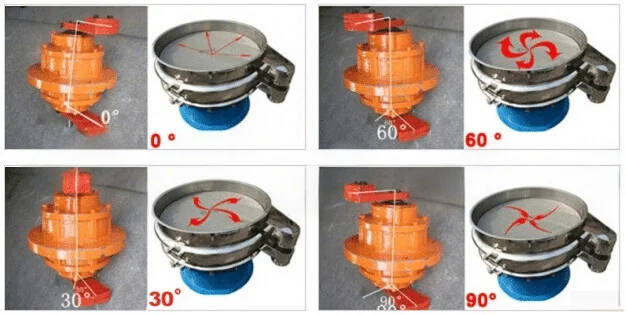

For vibrating sieve Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Selection and parameters：

Model		Power (kw)	Sieve Diameter (mm)	Granularity (mm)	Volage (v)	RPM (r/min)	Capacity (kg/h)
QS-400	1S	0.18	350	<10	380	1440	100
	2S
	3S
QS-600	1S	0.25	550	<10		1440	500
	2S
	3S
QS-800	1S	0.55	750	<10		1440	800
	2S
	3S
QS-1000	1S	0.75	920	<10		1440	1400
	2S
	3S
QS-1200	1S	1.1	1120	<10		1440	2100
	2S
	3S
QS-1500	1S	1.5	1420	<10		1440	2600
	2S
	3S
QS-1800	1S	2.2	1720	<10		1440	3300

According to the number of layers:

How can you select a machine, you need to know these:
No.1: The diameter of this machine or the capacity you want.
No.2: The layers ?
No.3: The material of the machine?
If you don’t know, don’t worry, please tell me, we can recommand for you the suitable model.
