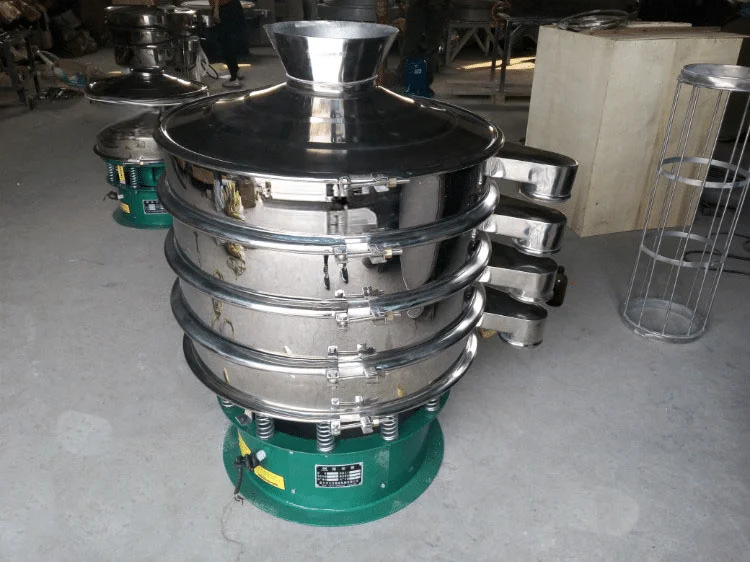

Customized hopper vibrating sieve

Customized hopper vibrating sieve：

We are manufacturer of the vibrating sieve,we can be customized by the customer request.included the inlet hopper,valve on the output,the height of the base ,the height of frame and so on.As long as you have the request,we can meet you.

The detailed information of the vibrating sieve is as follows

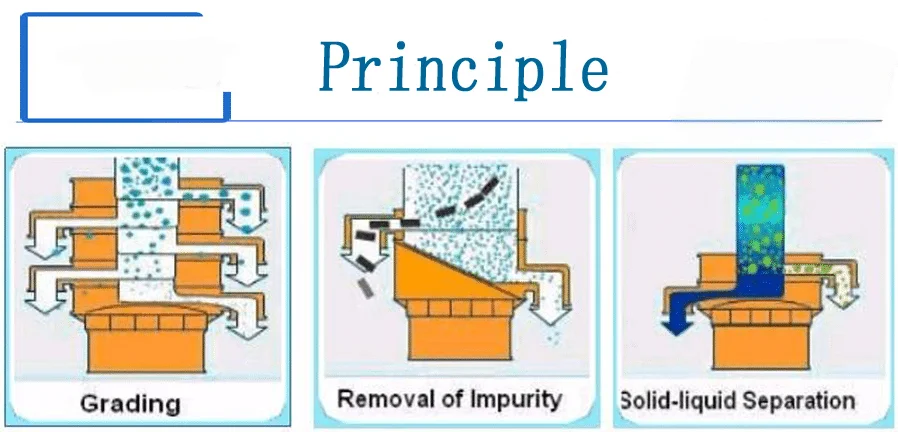

Working principle:

For vibrating sieve Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

Selection and parameters：

Model		Power (kw)	Sieve Diameter (mm)	Granularity (mm)	Volage (v)	RPM (r/min)	Capacity (kg/h)
QS-400	1P	0.18	350	<10	380	1440	100
	2P
	3P
QS-600	1P	0.25	550	<10		1440	500
	2P
	3P
QS-800	1P	0.55	750	<10		1440	800
	2P
	3P
QS-1000	1P	0.75	920	<10		1440	1400
	2P
	3P
QS-1200	1P	1.1	1120	<10		1440	2100
	2P
	3P
QS-1500	1P	1.5	1420	<10		1440	2600
	2P
	3P
QS-1800	1P	2.2	1720	<10		1440	3300
	2P
	3P

Note:
The voltage and power in the table can be customized according to your request to adapt your machine working environment.
The capacity in the table is tested in the following cases:the name of raw material is sand with 4 mesh screen.If you want to know specific capacity,please tell us your material and its property.
